Frael King

Read in: IT 🇮🇹   EN 🇺🇸

Questo computer è arrivato in collezione quasi per caso. Facendo quattro chiacchiere dal parrucchiere, uno dei clienti aveva un "vecchio computer" da vendere. La cifra richiesta era molto alta, mentre il valore di questo computer è molto basso, per cui ho deciso di trattare decisamente il prezzo e il venditore ha accettato. Il computer Frael King si presenta in ottime condizioni, corredato con tastiera Mitsumi KPQ-E84YC e monitor a fosfori verdi Philips BM7502/00G.

Subscribe my YouTube channel ValorosoIT. Retro technology, vintage audio, retro computers, experiments and tests. Retroprogramming, Basic. Commodore, IBM, Atari, Apple, Texas Instruments, Amstrad, MSX.

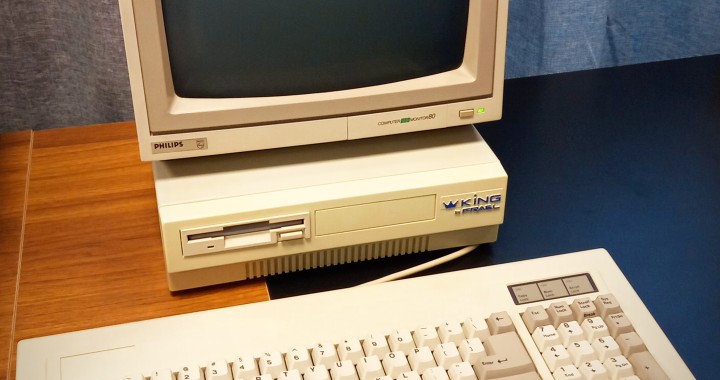

Frael King computer, Philips BM7502/00G monochrome monitor, green phosphors, keyboard Mitsumi KPQ-E84YC din 5 poles

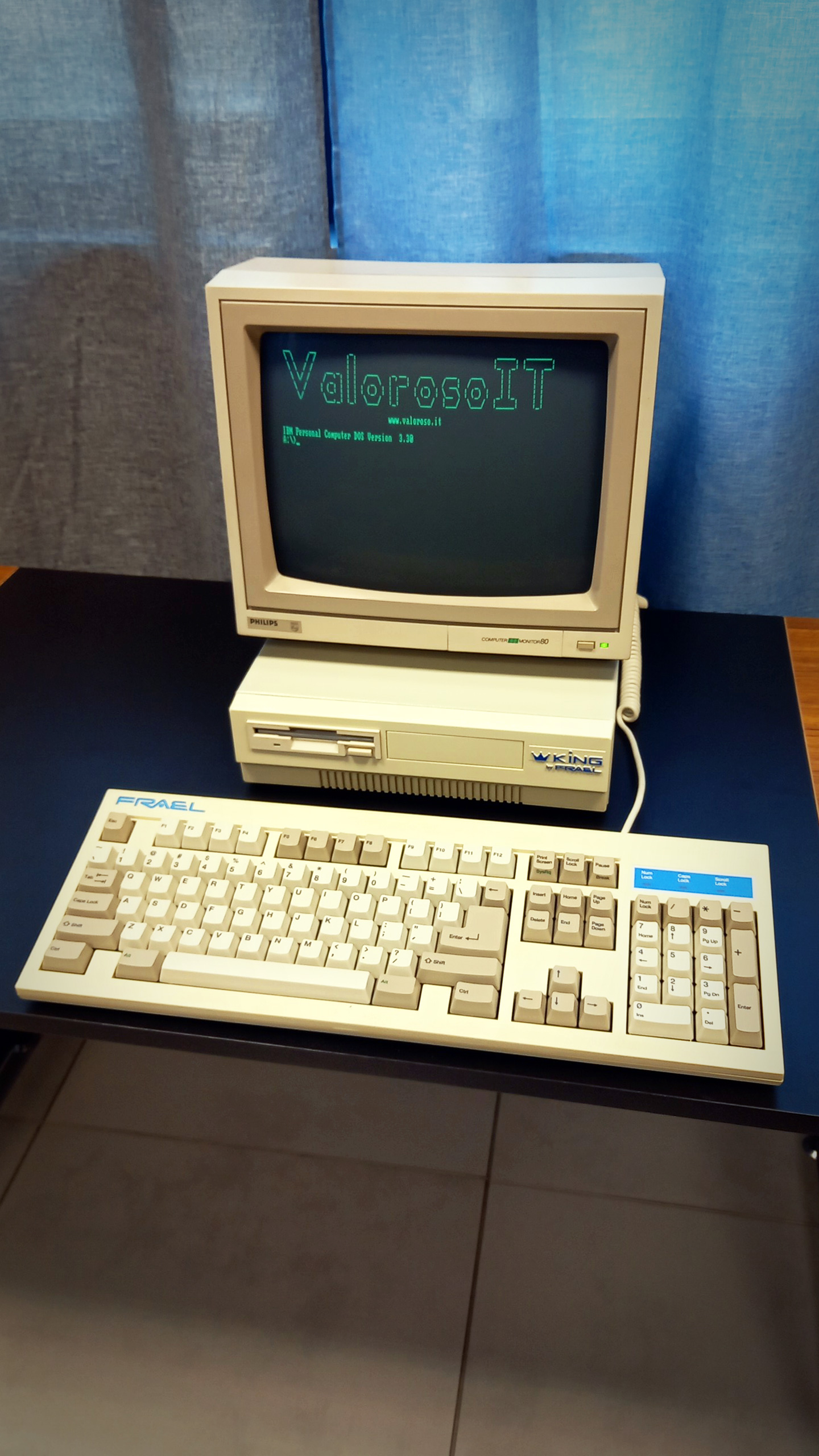

Later, with a little luck and a lot of patience, I was able to find and buy the original Frael keyboard.

Frael King computer, ValorosoIT collection, Philips CRT monitor, keyboard, original keyboard

Frael King

Il Frael King è un desktop di fascia entry-level, ma davvero entry! Pare venisse consegnato agli studenti del corso di informatica della Scuola 2F, per cui non era venduto direttamente dal produttore. Pur essendo la Frael un'azienda italiana, il computer Frael King era prodotto da Frael Asia in Taiwan.

L'esemplare in mio possesso è del 1989. Per essere un computer di quegli anni... presenta delle caratteristiche piuttosto semplici, se paragonate ai computer disponibili a quell'epoca. Si pensi che il Frael King monta un processore NEC V20 (μPD70108), compatibile con l'Intel 8088. In quello stesso anno, Intel iniziava a produrre il 486!

I had compared the performance of vintage CPUs with each other and with modern ones in this video/article.

Startup screen

The computer starts with the following texts:

FRAEL KING BIOS ver 3.40
Copyright 1989 FRAEL CO., LTD.
IMAGE POSITIVE

Runs diagnostic tests and counts all 512 KB of RAM. Then load the software on the 720 KB diskette.

Frael King computer vintage, Philips BM7502/00G monochrome monitor, fosfori verdi, tastiera Mitsumi KPQ-E84YC din 5 poli

Technical characteristics of the Frael King vintage computer

CPU: NEC V20 (μPD70108), 16 bit, 8 MHz

RAM: 512 KB

Follow me on Instagram channel. Retro technology, Commodore, vintage audio, retro computers, experiments and tests. Retroprogramming, Basic. Commodore, IBM, Atari, Apple, Texas Instruments, Amstrad, MSX.

ROM: 128 KB (contiene il POST = Power On Self Test e il BIOS = Basic Input-Output System)

Graphics: Integrated CGA graphics card, with 8-pin round connector (composite video) and RF connector for TV

Text mode: 80 columns x 20 rows

Graphics mode: 640 x 200 pixels

Frael King vintage computer IBM compatibile, scheda madre, NEC V20, slot ISA, RAM, ROM

Audio: beep

Keyboard: external 5-pole DIN

Accompanying software: computer course of the 2F School, containing the MS DOS version 3.30 operating system

Supporti di archiviazione: n. 1 floppy disk drive interno, 3.5", 720 KB

Frael King vintage IBM compatible computer, internal, motherboard, floppy controller, riser card, ISA slot

Expansion ports, internal:

  • N. 2 ISA 8 bit expansion ports on riser card
  • There are some empty sockets, probably you can expand the RAM and add more features, but I haven't found any documentation about it.
Frael King, porte posteriori, riser card, slot ISA 8 bit

Expansion ports, external:

  • 5-pole DIN keypad
  • Other 5-pole DIN connector with unknown functionality
  • Parallel db 25 poles (centronics)
  • 9-pole DB connector for TTL monitors
  • 8-pole round composite video connector
  • RF connector

E' anche presente un interruttore che consente di selezionare il tipo di monitor: TTL oppure TV PAL.

Frael King, rear ports, keyboard, parallel, RF, monitor, power, switch

Dimensions: 28.5 x 36 x 8.5 cm. Weight to measure.

Follow me on Instagram channel. Retro technology, Commodore, vintage audio, retro computers, experiments and tests. Retroprogramming, Basic. Commodore, IBM, Atari, Apple, Texas Instruments, Amstrad, MSX.

Emulation

Il Frael King si avvia con sistema operativo MS DOS. E' possibile emulare l'ambiente MS-DOS con DOSBox (sebbene DOSBox sia un emulatore per sistemi x86).

Power supply

L’alimentatore del personal computer Frael King è all'interno al computer. Posteriormente al computer, è presente il connettore di alimentazione IEC C14, dove collegare il cavo di alimentazione di rete. Il mio esemplare si alimenta a 230 V in corrente alternata 50 Hz.

The voltages generated, in direct current, are:

  • 5V
  • 12V

The power switch is on the back of the computer, just below the power connector.

Papers

Frael King manual (italian) credits: Davide Barlotti

Date of entry into the collection: 09/16/2023
